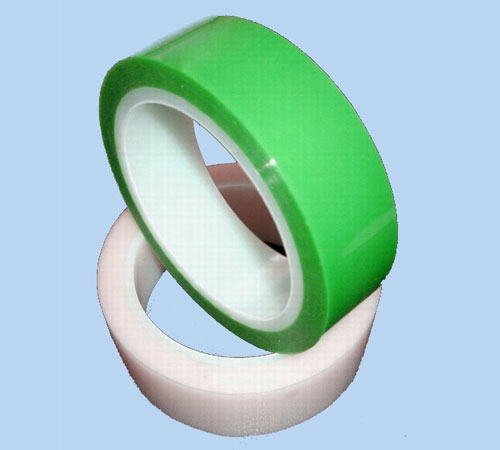

 PET base plate mounting tape
PET base plate mounting tape


Sealton from Plate Mounting Tape

PET base plate mounting tape

Date:2011 /02 /10

Product introduction

PET base plate mounting tape for the printing industry specializing in the design, good creep resistance, shear force; suitable for letterpress and flexo label printing, used to fix the rubber or resin plate on printing roller or resin sleeve, which can effectively improve the printing quality, reduce printing defect rate.

Product structure

Material:25um transparent PET film

Glue: solvent based removable pressure-sensitive adhesive

From the film:140g double coated kraft

Physical characteristics

Color - light blue

Thickness ( adhesive ) ISO 534110um

The initial adhesion of J . Dow 5#

Stripping force ASTM D3330700gf / 25mm

Product advantages

1) low initial viscosity is convenient and precise positioning plate;

2) excellent cohesion, can prevent the machine in operation plate shift;

3) dissection without leaving any residue, convenient replacement of plate

Use characteristics

Best film temperature:15~ 40C

Using temperature range: - 40~ + 150C

Size specification:

Width: 12mm.19mm,25mm,40mm,50mm,150mm

Length:50M, can be cut according to customer requirements

If there is any product selection and Application on the issue, please consult our technical and sales representative.

Matters needing attention

Material relating to the physical and chemical characteristics is based on the information we consider credible test results. In this list of typical numerical as the choice of the materials and reference, but does not constitute a guarantee. The company reserves the right to relevant technical data to make modifications without prior notice of rights.

Quality assurance

Sealton material is in the strict quality control system for production. Sold in any material if the confirmation of our manufacturing defects, the unconditional return. We return the range will not exceed the corresponding material price, any sales or agent shall be entitled to offer beyond the statement above guarantee.
